The CC1 can be used for mopping or vacuuming.  There is a top filter which needs to be swiched for wet or dry cleaning, and two under brushes that need to be swapped. If vacuuming there is also an edge brush used to help catch debris. It is recommended to also empty the debris tray when changing out the parts if needed.

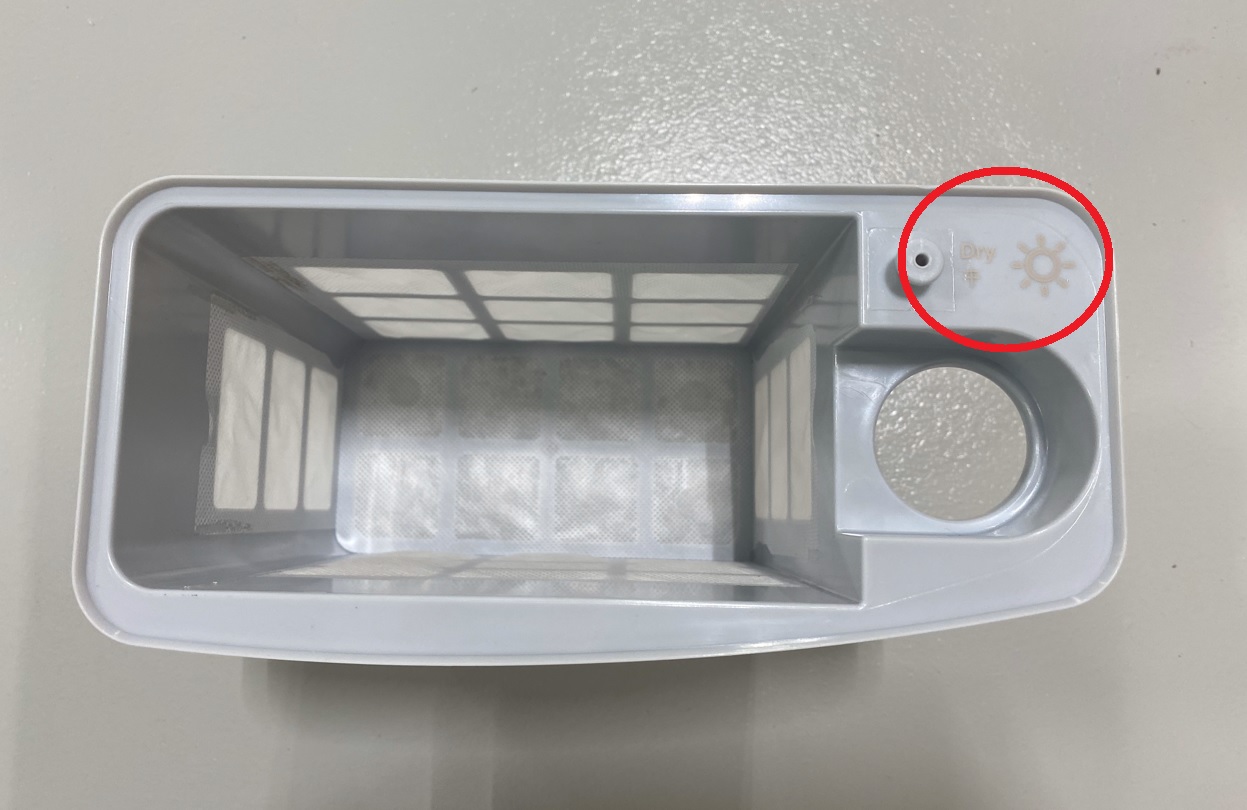

The top filter will be designated for wet or dry on the filter itself. When replacing the filter make sure the lid is secured tightly; this will affect the suction power of the machine.

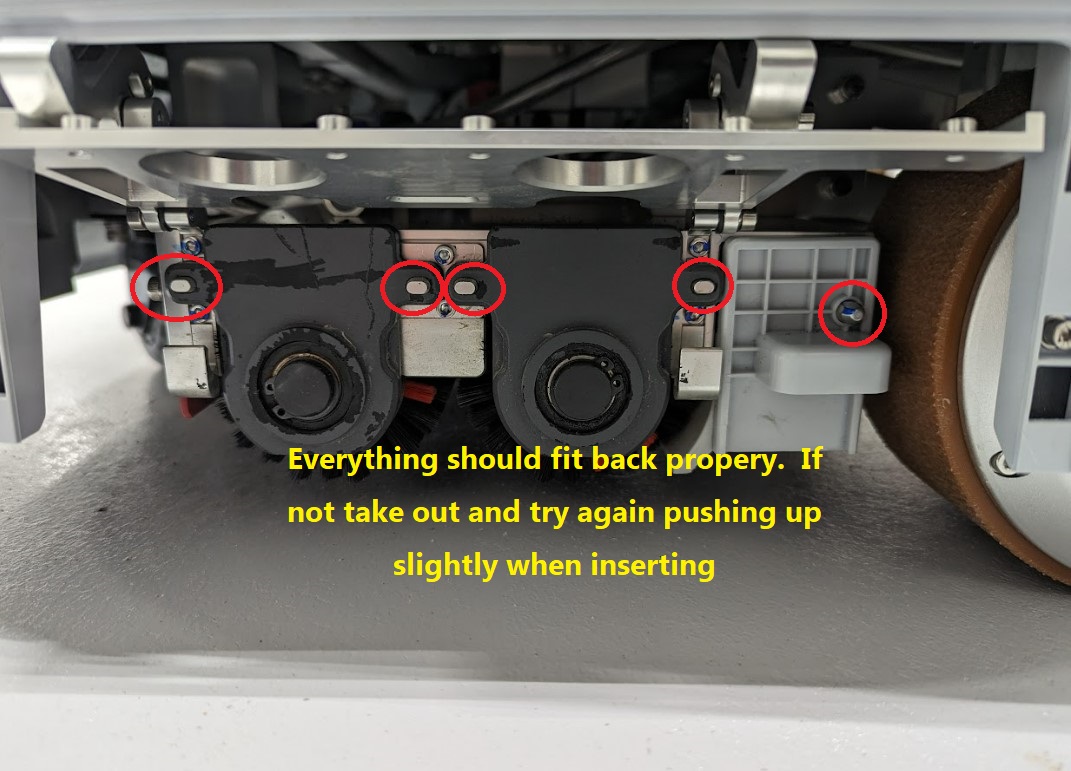

The underbrushes can be access by the side panel.  Flip down the latches, and then flip up the hatch to access the brushes and debris tray.  When replacing the brushes, apply slight upward pressure to assure alignment. When replacing the brush you can assist the replacement by using one hand to push in the brush, and on the other side of the Robot use your other hand to guide the brush onto the pin.  Once on the pin, line up the brush, pictured below, and finish inserting.

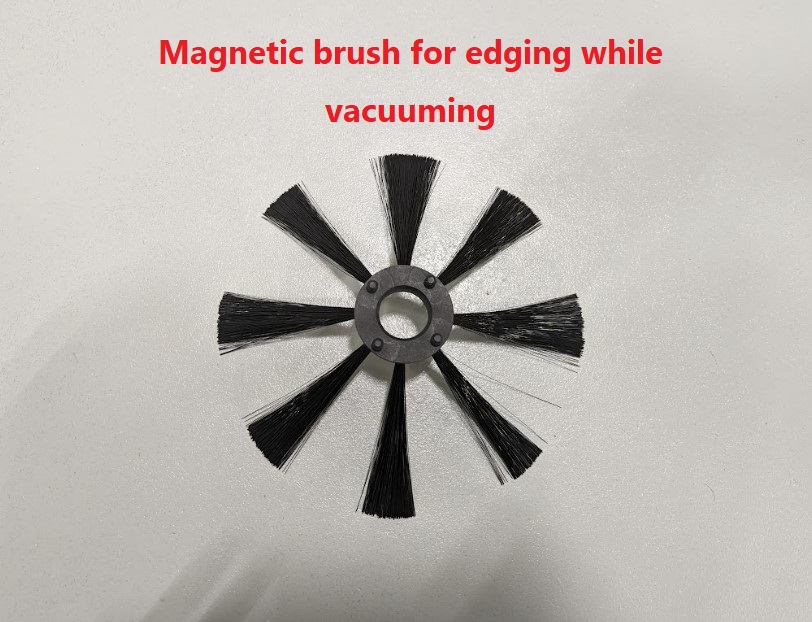

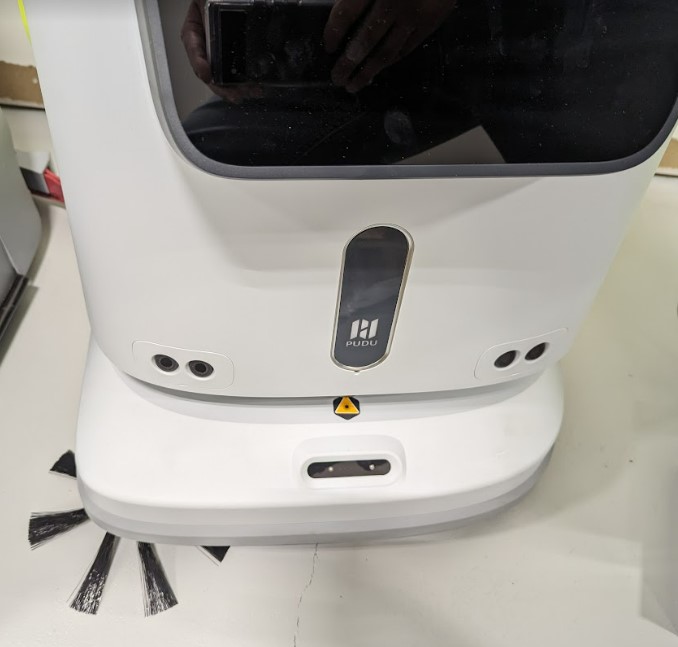

If using the Robot for vacuuming, you can attach the edge brush at the front left (looking at the Robot from the front) of the Robot.  The middle of the edge brush will sit on a magentic plate under the Robot for installation.
